BW | MCX-SERIES.

ROLLER-GUIDED MACHINING CENTERS.

The latest version of the successful MCX machining centers, with a well-conceived classification into 9 different types with 1,500 to 4,800 mm swing diameter and 1,500 to 40,000 kg payload. Robust sizing and performance, rapid traversing speeds of up to 65 m/min and acceleration to 5 m/s² ensure outstanding dynamics and short downtimes. A top-class machining centre that leaves nothing to be desired.

Dynamics and power for universal use.
All MCX machining centers are robustly dimensioned, featuring high-torque spindle units and preloaded precision ball-screw drives or, in the case of very large travel ranges, a high-precision rack-and-pinion drive. This guarantees high long-term accuracy, even in the case of rough machining combined with fine machining.

+ Roller-guided.
+ 1,500 bis 3,700 mm swing Diameter (option 4,800 mm).
+ Working range (X,Y,Z) 4,800 x 3,000 x 3,200 mm.
+ Payload from 1,500 to 40,000 kg.
+ Rapid traversing speeds up to 60 m/min.
+ Acceleration bis zu 5 m/s².

Technical Data - Metric System

Technical Data Units MCX 800 MCX 900 MCX 1000 MCX 1200 MCX 1250 MCX 1400 MCX 1600 MCX 2000
Working Range mm 1,250 | 1,000 | 1,250 1,600 | 1,400 | 1,600 2,200 | 1,400 | 1,600 2,800 | 1,400 | 1,800 2,800 | 2,200 | 2,100 3,200 | 2,200 | 2,100 3,700 | 2,500 | 2,500 4,200 | 2,500 | 2,500
Working range optional mm 1,400 | 1,200 | 1,500 1,800 | 1,600 | 1,800 2,200 | 1,600 | 1,800 2,800 | 1,600 | 2,100 2,800 | 2,200 | 2,500 4,800 | 3,000 | 3,200 4,800 | 3,000 | 3,200 5,200 | 3,000 | 3,200
Workpiece swing diameter mm 1,500 x 1,300 1,800 x 1,750 2,300 x 1,900 2,650 x 1,900 3,000 x 2,500 3,200 x 2,500 3,700 x 2,700 4,200 x 2,700
Pallet size, standard mm 800 x 800 800 x 1,000 1,000 x 1,250 1,000 x 1,250 1,000 x 1,250 1,600 x 1,600 1,600 x 2,000 2,000 x 2,500
Pallet load kg 2,500 3,500 5,000 7,000 7,000 (8,000) 12,000 (14,000) 18,000 (20,000) 40,000
Rapid traverse, standard m/min 65 | 65| 65 65 | 65| 65 50 | 60 | 60 50 | 60 | 60 50 | 50 | 50 50 | 50 | 50 30 | 50 | 50 30 | 50 | 50
Spindle power 100% duty rating kW 41 41 41 41 (60) 41 (60) 41 (60) 41 (60) 41 (60)
Torque 100% duty rating Nm 1,220 1,220 1,220 1,220 (3,500) 1,220 (3,500) 1,220 (3,500) 1,220 (3,500) 1,220 (3,500)
Speed range, 2 gear steps min-1 20-5,500 (10,000) 20-5,500 (10,000) 20-5,500 (10,000) 20-5,500 (10,000) 20-5,500 (10,000) 20-5,500 (10,000) 20-5,500 (10,000) 20-5,500 (10,000)
Number of tool pockets 128-800 128-800 128-800 128-800 128-800 128-800 128-800 128-800
Tool weight kg 60 (75) 60 (75) 60 (75) 60 (75) 60 (75) 60 (75) 60 (75) 60 (75)

Technical specifications are subject to change without prior notice.

Technical data MCX 800 MCX 900 MCX 1000 MCX 1200 MCX 1250 MCX 1400 MCX 1600 MCX 2000
Working range (X | Y | Z) 49.21 | 39.37 | 49.21 63.00 | 55.12 | 63.00 86.61 | 55.12 | 63.00 110.24 | | 55,12 | 70.87 110.24 | 86.61 | 82.68 125.98 | 86.61 | 82.68 145.67 | 98.43 | 98.43 165.36 | 98.43 | 98.43
Working range optional 49.21 | 47.24 | 55.12 70.87 | 63.00 | 70.87 86.61 | 63.00 | 70.87 98.43 | 70.87 | 82.68 110.24 | 86.61 | 98.43 188.98 | 118.11 | 125.98 188.98 | 118.11 | 125.98 204.72 | 118.11 | 125.98
Workpiece swing diameter, Ø x H 59.06 x 51.18 63.00 x 68.90 90.55 x 74.80 98.43 x 82.68 110.24 x 98.43 125.98 x 102.36 145.67 x 106.30 165.35x106.30
Pallet size, standard 31.50 x 31.50 31.50 x 39.37 39.37 x 49.21 39.37 x 49.21 93.37 x 49.21 63.00 x 63.00 63.00 x 78.74 78.74x98,43
Pallet load 5,512 7,716 11,023 15,432 15,432 (17,637) 26,455 (30,865) 39,683 (44,092) 39,683 (44,092)
Rapid traverse, standard axis travel 2,559 | 2,559 | 2,559 2,559 | 2,559 | 2,559 1,969 | 2,362 | 2,362 1,969 | 1,969 | 1,969 1,969 | 1,969 | 1,969 1,969 | 1,969 | 1,969 1,969 | 1,969 | 1,969 1,969 | 1,969 | 1,969
Spindle power 100% duty rating 55 55 55 55 (80) 55 (80) 55 (80) 55 (80) 55 (80)
Torque 100% duty rating 10,798 10,798 10,798 10,798 (30,978) 10,798 (30,978) 10,798 (30,978) 10,798 (30,978) 10,798 (30,978)
Speed range 2 gear steps 20-5,500 (10,000) 20-5,500 (10,000) 20-5,500 (10,000) 20-5,500 (10,000) 20-5,500 (10,000) 20-5,500 (10,000) 20-5,500 (10,000) 20-5,500 (10,000)
Number of tool pockets 128-800 128-800 128-800 128-800 128-800 128-800 128-800 128-800
Tool weight 132.3 (165.3) 132.3 (165.3) 132.3 (165.3) 132.3 (165.3) 132.3 (165.3) 132.3 (165.3) 132.3 (165.3) 132.3 (165.3)

Technical specifications are subject to change without prior notice.



  • Made by BURKHARDT+WEBER.
  • Powerful and robustly dimensioned.
  • Strictest quality controls.
  • 24-hour load spectrum on BW test stand with programmable counter-loads.

2-STAGE HORIZONTAL.

  • Powerful gear spindles, up to 52 kW and 2,000 Nm.
  • Up to 10,000 rpm for state-of-the-art tools.

4-STAGE HORIZONTAL.

  • Powerful gear spindles for heavy machining, up to 80 kW, 3,600 Nm.
  • Generously dimensioned bearings with large support span and speeds up to 5,000 rpm.

5-AXIS SWIVEL HEAD.

  • NC-controlled, two gear stages.
  • Up to 42 kW, 2,000 Nm, 8,000 rpm.
  • 5-axis simultaneous machining.
  • Generously-dimensioned bearing and high holding torque.

QUILL SPINDLE.

  • 2-speed transmission unit.
  • Up to 60 kW, 2,000 Nm, 4,000 rpm.
  • D 160 mm / 1,000 mm stroke.
  • 2 feed motors.
  • Automatic length and sag compensation in the µ range.

2-STAGE HORIZONTAL.

2-STAGE HORIZONTAL.

4-STAGE HORIZONTAL.

4-STAGE HORIZONTAL.

5-AXIS SWIVEL HEAD.

5-AXIS SWIVEL HEAD.

QUILL SPINDLE.

QUILL SPINDLE.



  • Made by BURKHARDT+WEBER.
  • Pallet loads from 1,500 kg to 40,000 kg.
  • Particularly high tilting and tangential moments due to low table design and generously dimensioned axial roller bearings and holding brakes for optimum machining performance and excellent geometric results.
  • For pallet loads over 12,000 kg, all tables have hydrostatic axial and radial bearings.

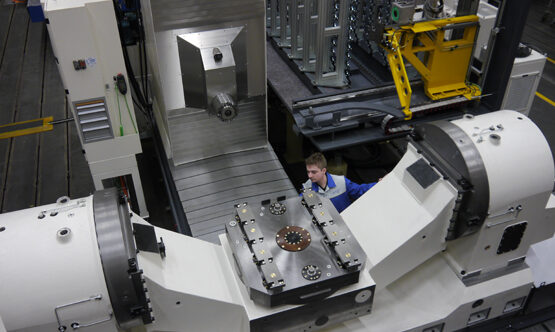

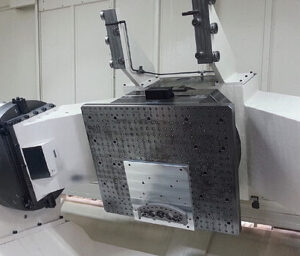

ROTARY/TILTING TABLE.

  • Simultaneous 5-axis machining with horizontal spindle or in combination with pivoting spindle.
  • Generously dimensioned NC tilting table. Machine table integrated in a heavily ribbed, non-flexing swing bridge.
  • High dynamic and positioning accuracies.
  • All spatial positions are reproducible. Optimum chip clearance.

FACE PLATES.

  • Face plates fitted vertically on the machine table.
  • Optimum chip clearance and easy access when using short tools
  • With a 5th NC-controlled axis
  • Face plate diameter up to 2,000 mm
  • Automatic switching from the pallet changer tooling station to the working area.
  • Reliable and virtually wear-free thanks to cable-guided connection (no couplings).
  • Face plate surfaces are freely configurable, because they are made in-house.
Rotarty-/Tilting-Table.

Rotarty-/Tilting-Table.

Face Plates.

Face Plates.

The modular, highly flexible tool magazines are peerless and market-leading worldwide.



  • Made by BURKHARDT+WEBER.
  • Maximum capacity of 800 tools.
  • 5 highly dynamic NC axes.
  • Traversing speeds up to 200 m/min.
  • Changeable weight up to 60 kg, tilting moment up to 150 Nm.
  • Tool lengths up to 1,200 mm.
  • Boring bar diameters up to 900 mm.
  • Automatic determination of the tool tilting moment and weight.
  • Application-oriented pre-storage and comprehensive tool management for maximum convenience.
  • Every magazine can be fully customised at the time of ordering and easily retrofitted or expanded, if required, even years later.
  • Loading and unloading at a loading station with 2 x 8 locations operating in parallel with machining.
  • Clever tool management and 22″ smart control panel (optional).
  • Tool data transfer via chip, print code or online.

Versions:

  • 128 locations in basic version for series production.
  • 352 locations for machining workpiece families.
  • 800 locations for maximum flexibility.

We develop customer-specific solutions for special applications, such as automatic insertion equipment for very long series boring bar lengths up to 3,000 mm or 8 additional magazines for fast changeover of special tools weighing up to 500 kg each.

Tool Gripper.

Tool Gripper.

800 tool positions for maximum flexibility.

800 tool positions for maximum flexibility.

SMART PANEL: HIGH QUALITY 24“- FULL HD MULTI-TOUCH PANEL.

The machining centres are equipped with a high-quality 24″ multi-touch panel that leaves nothing to be desired. Innovative design, intuitive operation and straightforward user interface make the new panel another highlight of the BURKHARDT+WEBER machines. The pioneering panel allows the operator to quickly locate the desired functions, process parameters and supporting information.
All machining centres from BURKHARDT+WEBER are euqipped with the Siemens SINUMERIK ONE control system.Smart panel:

  • 24“ full HD multi-touch panel.
  • Three independent display areas.
  • Process data monitoring.
  • Camera image.
  • PDF-Viewer.
  • Virtual keyboard.
  • Easy-care, high-quality glass surface.
  • High-quality aluminium housing.
  • Machine control panel.
  • Short-stroke keys with very good tactile feedback.
  • Separate correction switch.
  • Spindle speed.
  • Feed rate.
  • Rapid traversing speed.
  • Keypad for customer-specific additional functions.
  • Pivoted, height-adjustable mounting.

INTERFACE.

The user interface of the BURKHARDT+WEBER machining centres features innovative, machine-specific operating areas. These impress with their modern design and functionality. Enhanced user-friendliness was the focus of this new development. And this succeeded in impressive fashion through use of modern control elements and additional convenience functions. The intuitively operated areas making it easier for the operator to enter data, plan jobs and control the machine.

  • Intuitive and quick operation.
  • New and innovative display elements.
  • Operator control of machine functions.
  • Straightforward navigation.
  • Process monitoring.
  • Favourites list.
  • Search function.
  • Tool management operating area.
  • Easier tool data entry.
  • Graphic support.
  • Automatic determination of the tool type.
  • Straightforward and dynamic.
  • Plausibility check.
  • Clear separation of BW applications and Sinumerik Operate user interface for intuitive operation.
  • Parallel, independent operation of machine and tool magazine.
Intuitive operation with smart panel.

Intuitive operation with smart panel.

With machine-specific operating areas.

With machine-specific operating areas.

Flexible and unattended production.

PALLET CHANGER, STANDARD.

  • Dual pallet changer; set up during machine operation.
  • Load-dependent, servo-driven movements for rapid pallet changing.

THIRD AND FOURTH PALLET CHANGING STATION.

  • Very economical in the case of multiple clamping locations or a third shift.
  • Every station can be set up autonomously.

CIRCULAR PALLET STORE.

  • Made by BURKHARDT+WEBER.
  • Rapid changeover with up to six pallets in the system.
  • Motor-driven, rotating, generously dimensioned set-up station.

LINEAR LINKING SYSTEMS.

  • Made by BURKHARDT+WEBER.
  • Unmanned operation of multiple machining centres in rail-guided linked system.

INTEGRATION IN MULTI-LEVEL SYSTEMS.

  • Simple integration in modern high rack systems.

ROBOT LOADING.

  • Automated workpiece handling.
  • Intelligent, self-centring, hydraulic clamping devices.
Pallet changing station.

Pallet changing station.

Rotary Pallet Store.

Rotary Pallet Store.

Integration in high rack systems.

Integration in high rack systems.

Robot Loading.

Robot Loading.

Much of what you pay highly for from other companies serving the market comes as standard with BW machines.



ENERGY EFFICIENCY.

Even in their standard versions, every machining center is equipped with the energy efficiency package developed by BW. Through installation of energy-optimized components and operating processes, energy consumption is reduced by up to 15%, depending on the application.

OPERATOR ERGONOMICS.

Each BW machining centre has a large operator platform, wide access from the platform to the accessible working area with no steps, a large 24″ pivoting, height adjustable touchscreen, a pull-out writing surface, four integrated drawers and a locker.

WEEKEND CIRCUIT.

In the standard version, coolant is automatically circulated even when the machine is switched off. Tools can be thoroughly cleaned automatically over the weekend when this option is selected.

WORKING AREA RINSING.

Generously dimensioned ceiling shower that directs the chip load shortly before the pallet ejectors into the two chip conveyors. Cabin corners of larger machines are rinsed out. Inclined surfaces are rinsed off, lateral double rinsing in the Z plane – this all ensures a clean working area. Inclined roof panel over the operator’s entry area to prevent dripping water. Optional spray gun with automatic retractor.

MAINTENANCE.

The open maintenance concept of BW: Everything is easy to check visually – no doors, grates, or the like. Location of the hydraulics and pneumatics at a single maintenance point, ergonomic filling heights, automatic approach to maintenance positions, accessible cabin ceilings for easy replacement of Flattec technology lighting (simply fold up the cartridge, replace, and you’re done). Complete maintenance guide with instructions can be opened and edited on the 24″ control panel.
MCX-SERIES.
