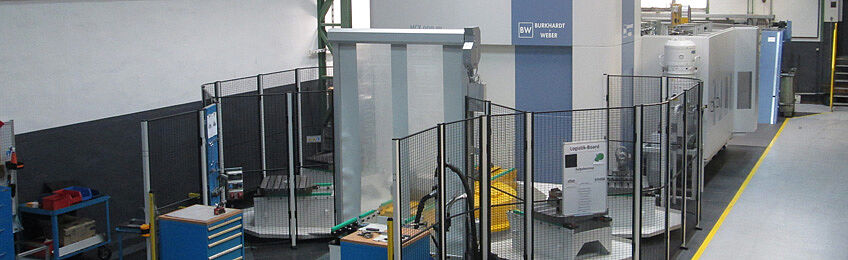

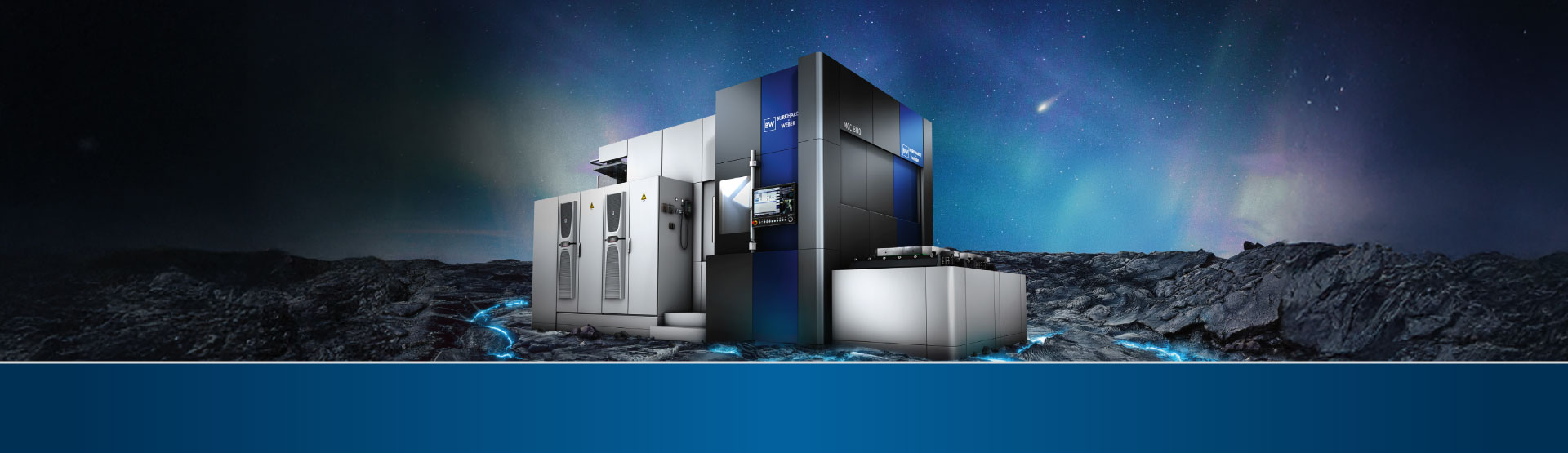

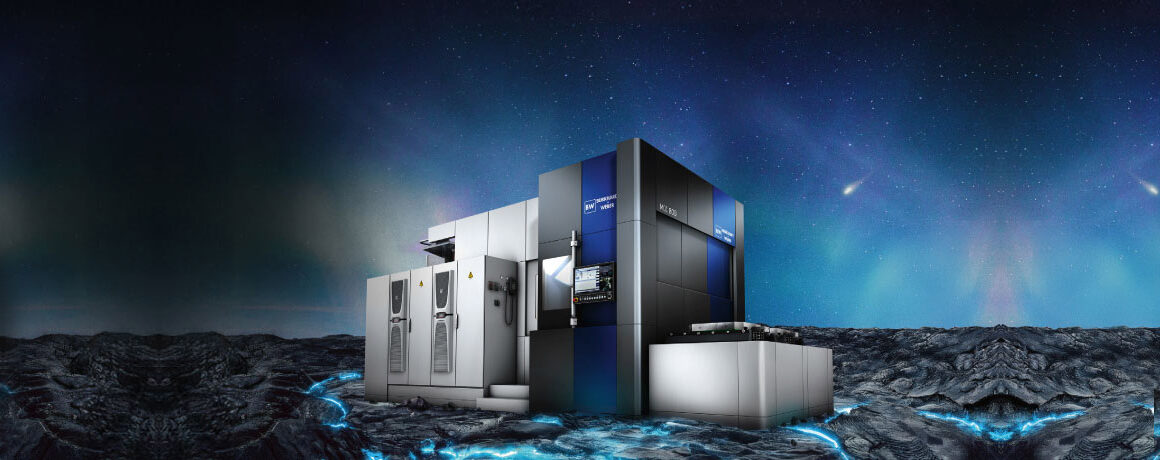

As a stand-alone machine in 630 or 800 pallet format or as part of an interlinked production system.

The MCC series consequently expands the lower end of the BW range. The compact machine combines all BW key features: power, accuracy, outstanding stiffness and availability.

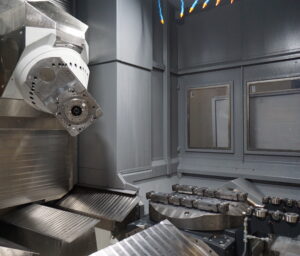

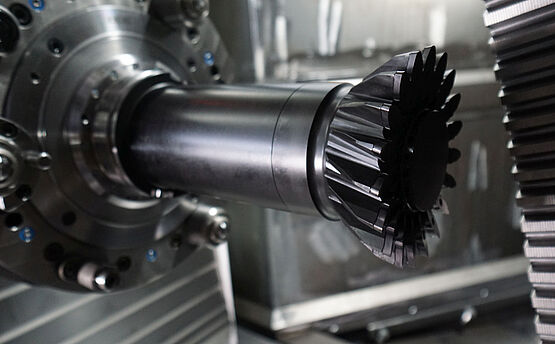

Whether a horizontal unit with power gear spindle or A-axis for the 5-axis performance. Large bearings and a wide distance between the guide elements offer an outstanding stiffness. With its high torque values the machine is a real workhorse. The result: powerful cutting capacity for the machining of steel, cast iron and titanium.

Equipped with the BW characteristic rack-type tool magazine and with cutting-edge information and communication technology the machines can be interlinked – but they are also ready for digital networking in self-organised production processes.

BW machining centers are normally highly individual. With the MCC, however, we have developed a standard production machine, which offers the specific features required for its typical use. The proven design of the larger machining centers has been adopted which makes the MCC a 100% BURKHARDT+WEBER machine.

• Spindle power, 100 % duty cycle kW 30 HP 40
• Max. torque, 100 % duty cycle Nm 300
• Standard speed range rpm 20 – 6,000 (10,000)

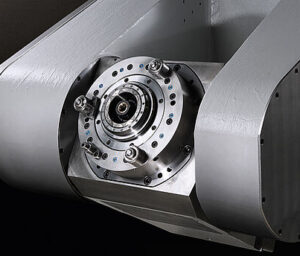

• Swivel range degr +45 / -110

• Spindle power, 100 % duty cycle kW 30
• Max. torque, 100 % duty cycle Nm 300
• Standard speed range rpm 20 – 6,000 (10,000)

• Spindle power, 100 % duty cycle kW 41
• Max. torque, 100 % duty cycle Nm 1,300
• Standard speed range rpm 20 – 6,000 (10,000)

• Made by BURKHARDT+WEBER.

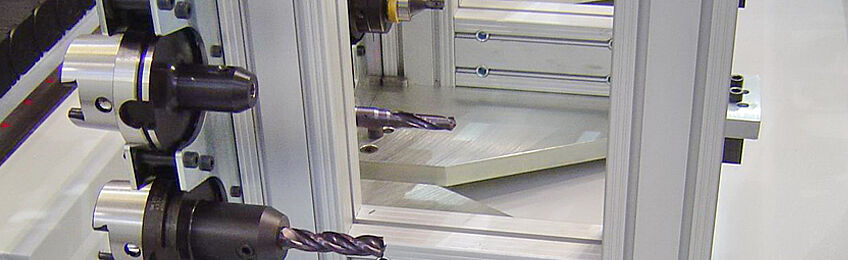

• Maximum capacity of 320 tools.
• Highly dynamic NC axes.
• Traversing speeds up to 200 m/min.
• Changeable weight up to 40 kg, tilting moment up to 60 Nm.
• Tool lengths up to 650 mm.
• Boring bar diameters up to 420 mm.
• Automatic determination of the tool tilting moment and weight.
• Application-oriented pre-storage and comprehensive tool management for maximum convenience.
• Every magazine can be fully customised at the time of ordering and easily retrofitted or expanded, if required, even years later.
• Clever tool management and 22″ smart control panel (optional).
• Tool data transfer via chip, print code or host.

Versions:

• 64 locations in basic version for series production.
• 128 locations for machining workpiece families.
• 320 locations for maximum flexibility.

ENERGY EFFICIENCY.
Even in their standard versions, every MCC machining center is equipped with the energy efficiency package developed by BW. Through installation of energy-optimised components and operating processes, energy consumption is reduced by up to 15%, depending on the application.

OPERATOR ERGONOMICS.

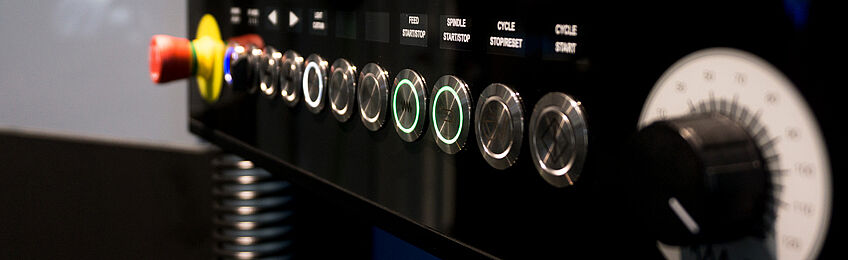

The MCC machining provides a large operator’s platform with an ergonomic access to the work area plus a 21” touchscreen, swiveling and adjustable in height.

WORKING AREA RINSING.
Generously dimensioned ceiling shower that directs the chip load shortly before the pallet ejectors into the two chip conveyors. Cabin corners of larger machines are rinsed out. Inclined surfaces are rinsed off, lateral double rinsing in the Z plane – this all ensures a clean working area. Inclined roof panel over the operator’s entry area to prevent dripping water. Optional spray gun.

MAINTENANCE.
The open maintenance concept of BW: Everything is easy to check visually – no doors, grates, or the like. Location of the hydraulics and pneumatics at a single maintenance point, ergonomic filling heights. Complete maintenance guide with instructions can be opened and edited on the 22″ control panel.
